GreenPower IP66 75KW Three Phase Multi MPPT On Grid Solar Inverter

GreenPower IP66 75KW Three Phase Multi MPPT On Grid Solar Inverter

Overview
Recommended Products

Description:

1. Basic Structure

This inverter (like models ASP - 50/60KTLC etc.) is a Three - phase, Multi - MPPT on - grid type. It’s small and light—easy to install by hand, saving you setup and fix - up costs.

Communication ports: RS485 (standard), plus optional GPRS/Wifi. Lets you connect to monitoring systems to check how it’s running from far away.
DC breaker: Keeps it safe when you fix or use it. No fan—uses “convection cooling” instead. Quiet and less likely to break down.
DSP tech: At the core, helps control power precisely, so it works stably.

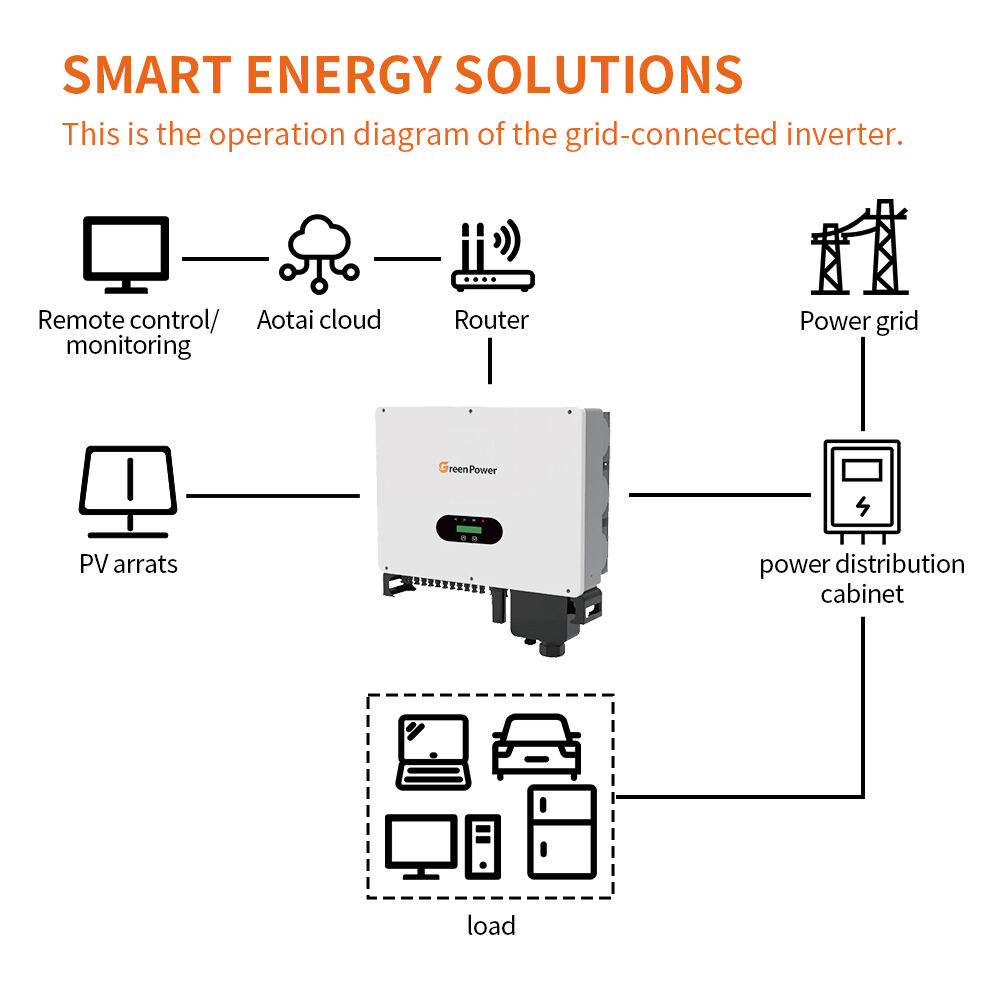

2. Working Process

Think of it as a solar - to - grid “translator”:

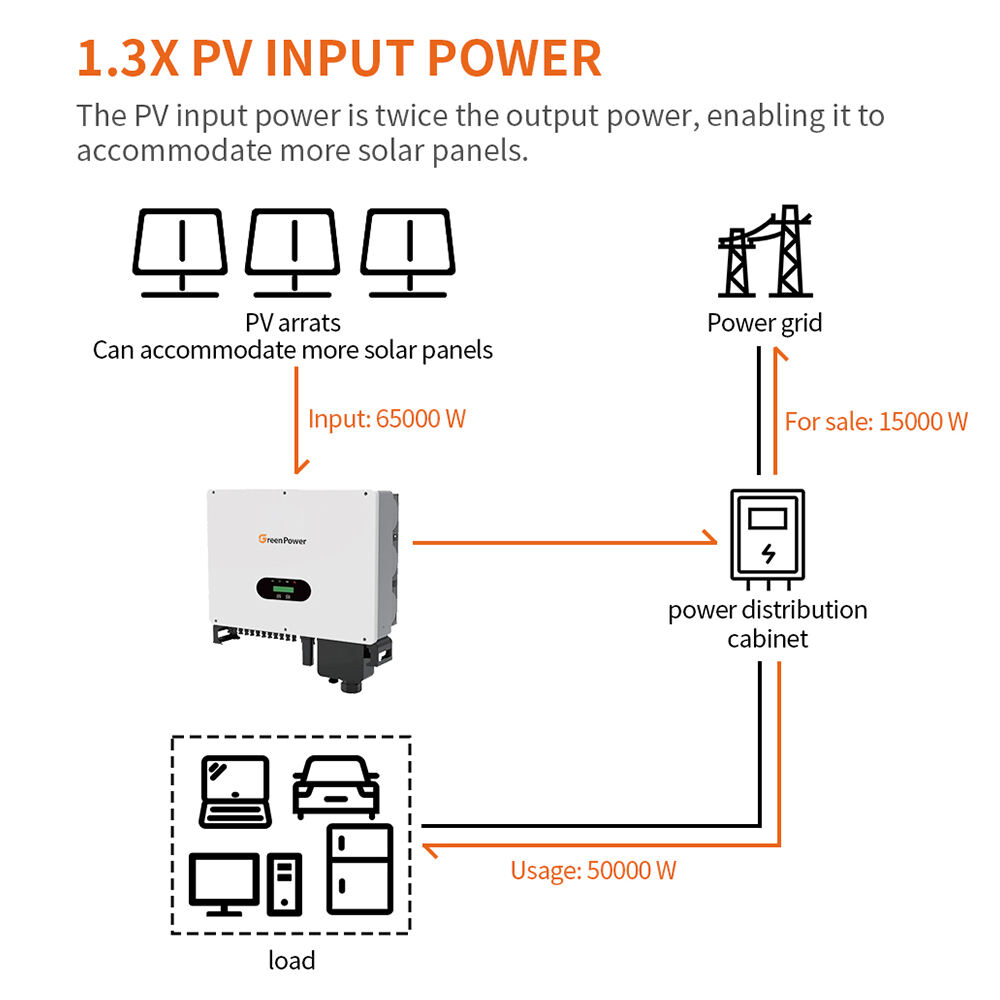

Takes in solar power: Gets DC power from your solar panels. Its MPPT feature (works 180 - 1000V, best at 650V) grabs as much power as possible from panels.
Converts cleanly: No transformer inside, so converts DC to AC super efficiently—up to 98.1% max efficiency. Hardly any energy waste. The power it makes is “clean” (THD < 2%), so it won’t mess with your home/grid electricity.
Connects to grid safely: Has protections to stop “island - like” risks (dangerous if grid and inverter don’t sync right). Also, can adjust power (0 - 100%) to match grid needs—stays stable, won’t cause issues.

3. Intelligent Control

Super easy to “smart manage”:

DSP + ports = remote control: The DSP core keeps power steady. With RS485/GPRS/Wifi, you can check power, efficiency, etc., from your phone/computer. Fix small problems or tweak settings without being on - site.
Auto - adapts to grid: If grid power needs change, it adjusts power (0 - 100%) by itself. Protections (like anti - islanding) also work automatically—you don’t have to do a thing.

Specifications:

Model Name	50KTLC	60KTLC	70KTLC-HV	75KTLC-HV
Input
Max. DC input power	65000W	78000W	91000W	97500W
Max. DC input voltage	1100V
Max. DC input current	45/45/45A
MPPT voltage range	250-1100V
Recommended MPPT operating voltage	650V		740V
Starting voltage	300V
No.Of MPPT	3
Max. no.of strings per MPPT	4	4
Output
Rated output power	50000W	60000W	70000W	75000W
Max. output power	55kVA	66kVA	77kVA	82.5kVA
Max. output current	80A	96A	89A	95A
Rated grid voltage	400V		500V
Grid voltage range	310~480Vac		422~550Vac
Rated grid frequency	50Hz/60Hz
Grid frequency range	45~55Hz/55~65Hz
THD	<2% (Under the rated power)
Power factor	0.99 (Under the rated power) / Adjustable range: 0.8 leading~0.8 lagging
DC current injection	<0.5% (Under the rated power)
System data
Max. efficiency	98.70%	98.90%	99%	99%
Euro. efficiency	98.30%	98.50%	98.50%	98.50%
Humidity range	0-100% non-condensing
Cooling type	Intelligent forced air cooling
Temperature range	-25~+60°C
Power consumption at night	<1W
Max. working altitude	4000m
Display	LED(optional: LCD)
Communication interface	WIFI(optional: RS485 or GPRS)
Protection
DC reverse-polarity protection	Yes
Short circuit protection	Yes
Output over current protection	Yes
Output over voltage protection	Yes
Insulation resistance monitoring	Yes
Residual current detection	Yes
Surge protection	Yes
Grid monitoring	Yes
Islanding protection	Yes
Temperature protection	Yes
Integrated DC switch	Yes
Mechanical data
Dimensions (WHD)	282681660mm
Weight	47kg

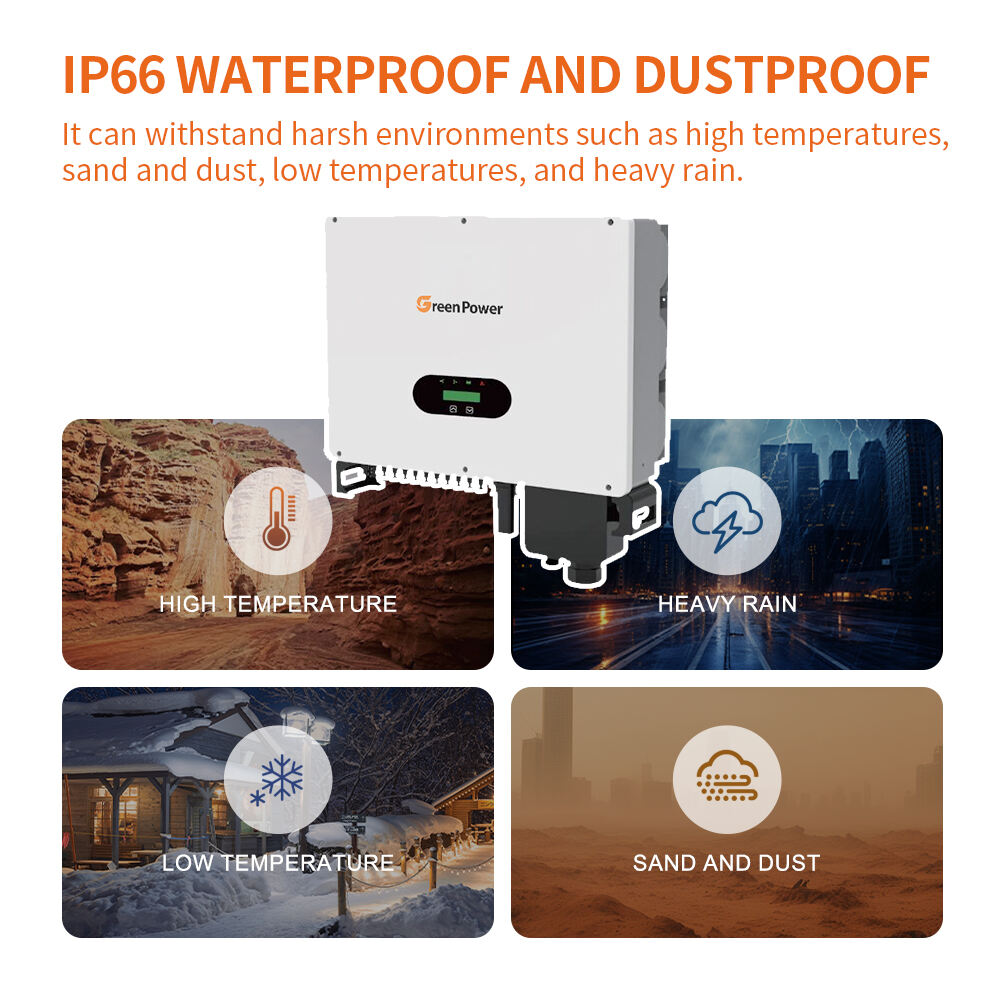

Protection class	IP66
Standard
Safety standard/EMC standard	NB/T32004-2018, IEC62109, IEC61000, IS16169 & IS16221(BIS)
Grid-connected standard	IEC61727, EN50549-1, VDE-4105, NRS-097-2-1, OVE-Richtlinie R25, UNE217001/2, Ordinance No.140
Other standard	IEC61683, IEC62116, EN50530, IEC60068

Applications:

For off-grid solar applications like residential rooftops or small commercial setups, this product delivers efficient lithium battery charging, intelligent power management, parallel operation for expanded load capacity, and WiFi-enabled real-time monitoring—ideal for users seeking cost-effective, eco-friendly solar energy solutions.

Advantages:

Flexible design
- Small size, light weight, supports manual installation, reducing user installation and maintenance costs.
- Multi - communication interfaces: RS485, GPRS (optional), Wifi (optional).
- DC breaker, easy to maintain and safe for use.
- Convection cooling without a fan.
- Digital DSP control technology.
Efficient conversion
- Transformerless design, with a maximum efficiency of up to 98.1%; European efficiency reaches up to 97.6%.
- Total current THD < 2%.
Grid friendly
- Equipped with active and passive anti - islanding protection.
- Function of continuously adjustable active power (0 - 100%).
Excellent qualities
- CQC Gold Sun Certification, TUV Certification, SAA Certification, CE Certification.

Vdc = 360V （The “Efficiency” represents efficiency, and “Rated output power” represents rated output power, corresponding to the meanings of the coordinate axes. ）
